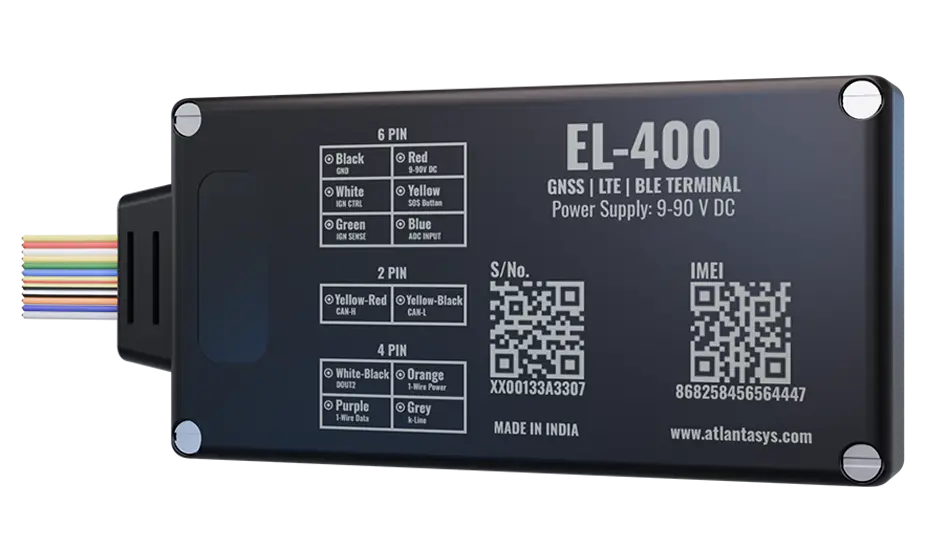

The EL-400 is a smart 4G vehicle tracker with a 2G fallback and Bluetooth connectivity to monitor and enhance the performance and security of electric vehicles. With a dependable battery backup, it guarantees uninterrupted operations for EV fleet owners. This device is compatible with CAN communication and can log data even in the absence of network connectivity.
| KEY FEATURES | |
| IO | Digital Input: 2, Digital Output: 2, Analog Input: 1, 1-RPM/1-Wire(Optional), CAN, K-line |
|
GNSS & GPS Antenna
|
Internal High Gain Antenna
|
|
Indicators
|
3 LED's (Power, GSM, GPS)
|
| USB | 2.0 Micro USB |
|
SIM
|
Micro SIM |
|
Memory
|
32Mb |
| Bluetooth | 5.0 |
| CAN Support | All legislated OBD-II Protocols, Non-Legislated OBD Protocols & Heavy-Duty |
| POWER | |
| Voltage Range | 9-90V DC |
| Battery | 120mAh Li-Po 3.7V |
| NAVIGATION | |
| GNSS | GPS, GLONASS, BeiDou |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Horizontal Position Autonomous | < 2.5m |
| SBAS | Supported |
| 2 DRMS, Vertical | ± 5m |
| Tracking Sensitivity | -161dBm |
| Re acquisition Sensitivity | -146dBm |
| Velocity | < 0.1m/s |
| Hot Start | < 1sec |
| Warm Start | < 30sec |
| Cold Start | < 35sec |
| CELLULAR NETWORK | |
| Band | 4G: B1,3,5,8,34,38,39,40,41, 2G: 900/ 1800MHz |
| RF Power | Class 4 (2W@850/900 MHZ), Class 1 (1W@1800/1900 MHz) |
| Coding Schemes | CS 1, 2, 3, 4 |
|
SMS
|
Point to point MO & MT, SMS cell broadcast
|
| OPERATING ENVIRONMENT | |
| Working Current | Sleep mode < 25mA, Active mode < 200mA |
| Operating Temperature |
-30°
C to +70°
C
|
| Humidity | 5% to 95% non-condensing at +40°C |
| PHYSICAL SPECIFICATION | |
| Dimension | 87 x 44 x 14.1 mm (L x B x H) |
