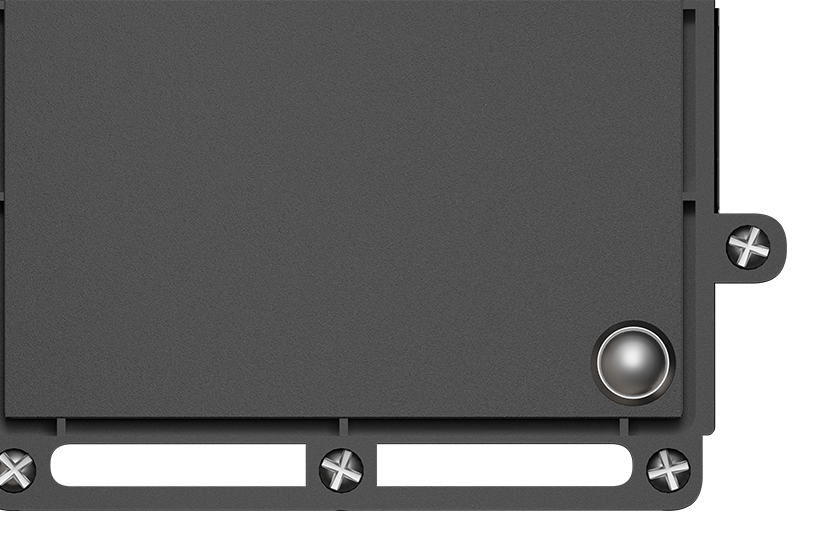

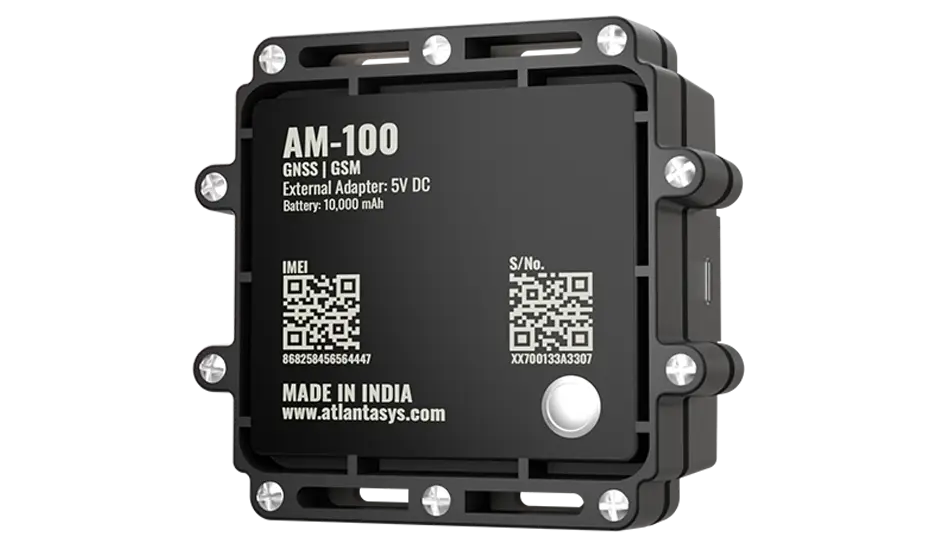

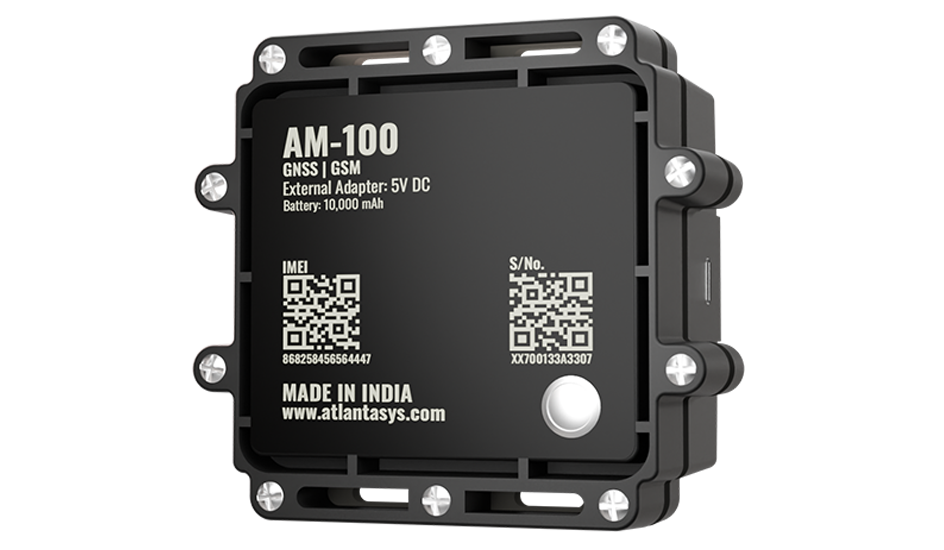

AM-100 is an Asset Tracking device with magnetic mounting capability that comes in a tightly packed casing which adds to its durability and makes it IP67. Enabled with a tamper sensor and huge battery backup qualify for long-lasting and wide-range applications with metal.
| KEY FEATURES | |
|
GNSS & GPS Antenna
|
Internal High Gain Antenna
|
|
Indicators
|
4 LED's (MCU, Charging, GSM, GPS)
|
|
SIM
|
Micro SIM
|
| Memory | 10,000 Log Packets |
| Device Mounting | Magnetic Mounting |
| POWER | |
| External Adapter | 5V DC, 1A Adapter |
| Battery |
10,000mAh Li-Po 3.7V
|
| NAVIGATION | |
| GNSS | GPS, QZSS, BeiDou, GAGAN,GLONASS |
| Channels | 33 Tracking / 99 Acquisition Channel |
| Tracking Sensitivity | -167dBm |
| Acceleration Accuracy | 0.1 m/s2 |
| Velocity Accuracy | 0.1 m/s |
| Hot Start | < 1sec |
| Warm Start | < 22sec |
| Cold Start | < 28sec |
| CELLULAR NETWORK | |
| Band | 2G Band: 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900 MHZ), Class 1 (1W@1800/1900 MHz) |
| GPRS | Type B, Class 12 Max. 85.6 Kbps (Uplink/Downlink) |
|
Coding Scheme
|
CS 1, 2, 3, 4
|
| Protocol | TCP / IP / FTP / HTTP / SSL |
| OPERATING ENVIRONMENT | |
| Working Current | Sleep mode < 5mA, Active mode < 125mA |
| Operating Temperature |
-30°
C to +80°
C
|
| Humidity | 5% to 95% non-condensing at +40°C |
