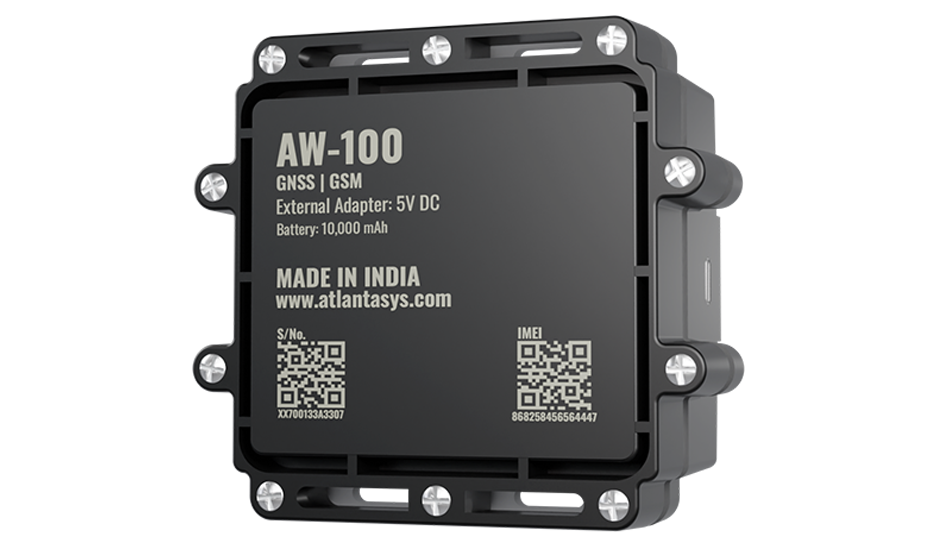

The AW-100 is a powerful, rugged, and cost-effective Asset Tracking Device. View, monitor, and track in real-time, the location of every asset within your fleet and quickly see your entire asset inventory.
| KEY FEATURES | |
|
GNSS & GPS Antenna
|
Internal High Gain Antenna
|
|
Indicators
|
4 LED's (MCU, Charging, GSM, GPS)
|
|
SIM
|
Micro SIM
|
| Memory | 10,000 Log Packets |
| POWER | |
| External Adapter | 5V DC, 1A Adapter |
| Battery |
5000mAh 3.7V
|
| NAVIGATION | |
| GNSS | GPS, GLONASS, BeiDou |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Tracking Sensitivity | -165dBm |
| Reacquisition Sensitivity | -148dBm |
| Velocity Accuracy | 0.1 m/s |
| Hot Start | < 1sec |
| Warm Start | < 30sec |
| Cold Start | < 35sec |
| CELLULAR NETWORK | |
| Band | 2G Band: 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900 MHZ), Class 1 (1W@1800/1900 MHz) |
| GPRS | Type B, Class 12 Max. 85.6 Kbps (Uplink/Downlink) |
|
Coding Scheme
|
CS 1, 2, 3, 4
|
| Protocol | TCP / IP / FTP / HTTP / SSL |
| OPERATING ENVIRONMENT | |
| Working Current | Sleep mode < 2mA, Active mode < 100mA |
| Operating Temperature |
-10°
C to +70°
C
|
| Humidity | 5% to 95% non-condensing at +40°C |
