Bluetooth connectivity expands usage scenarios with beacons, humidity, and temperature sensors.
Seamlessly connect for real-time vehicle data monitoring and diagnostics with built-in CAN port.

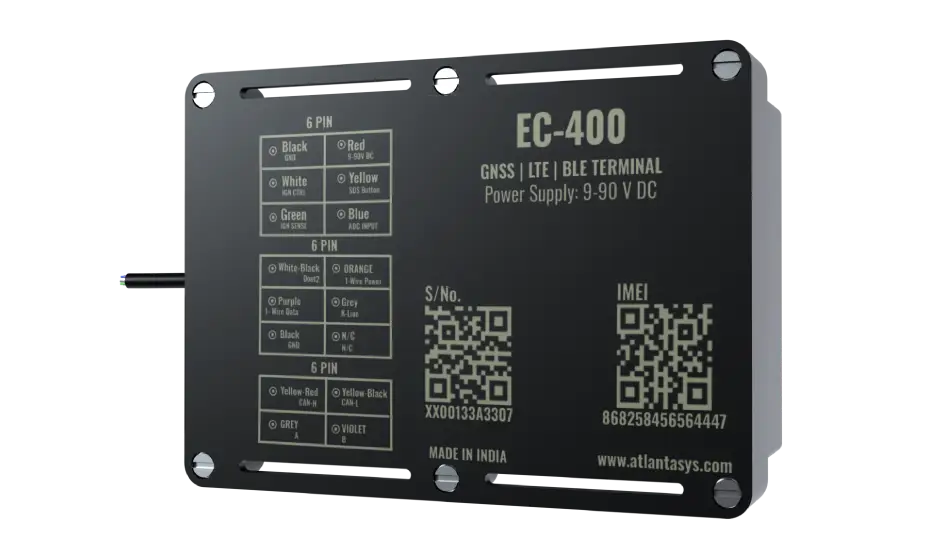

Advanced CAT 1 tracking device with 4G LTE and dependable 2G backup for reliable connectivity.
| Digital Input | 2 |
| RS232/ RS485 | 1*/1* |
| Digital Output | 3 |
| Analog Input | 1 |
| CAN | 1 |
| 1-Wire | 1 |
| GNSS Antenna | Internal High Gain |
| LTE Antenna | Internal High Gain |
| Indicators | 4 LEDs (Power, Charging, LTE, GPS) |
| USB | 2.0 Micro USB |
| SIM | Nano SIM- 4FF |
| Memory | 28000+ Log Packets |
| CAN Protocol Support | All legislated OBD-II Protocols, Non-Legislated OBD Protocols & Heavy-Duty |
| GNSS Constellations | GPS, GLONASS, BeiDou,QZSS |
| Channels | 47 Tracking Channels |
| Horizontal Position Autonomous | 1.5m CEP |
| SBAS | Supported |
| Tracking Sensitivity | -166 dBm |
| Re-acquisition Sensitivity | -160 dBm |
| Velocity | 0.1m/s |
| Hot Start | 1 sec |
| Warm Start | 2 sec |
| Cold Start | 12 sec |
| Technology | LTE CAT1, GSM |
| 2G Band | 900/1800 MHz |
| 4G Band | LTE FDD: B1/B3/B5/B7/B8/B20 |
| RF Power | GSM/GPRS power level: EGSM900: 4 (33dBm±2dB), DCS1800: 1 (30dBm±2dB); EDGE power level:EGSM900: E2 (27dBm±3dB),DCS1800 : E1 (26dBm+3dB/-4dB); LTE power level: 3 (23dBm±2.7dB) |
| SMS | Point to point MO & MT, SMS cell broadcast |
| Voltage Range | 9-90V DC |
| Battery | 1000mAh Li-Po 3.7V |
| Specification | BLE 5.0 |
| Supported Peripherals | Universal BLE sensors support, Beacons |
| Working Current | Active Mode < 160mA @ 12V |
| Operating Temperature | -20 °C to +60 °C (With Battery), -30 °C to +75 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |
| Ingress Protection Rating | IP67 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +35 °C (For 1 year) |
| Dimensions | 94 x 74 x 33 mm (L x B x H) |
| Weight | 143g |
| Sensors | Accelerometer, fuel sensor, pressure sensor , all BLE sensors |
| Configuration and firmware update | FOTA Web, FOTA, Configuration Tool(USB, BLE) |
| SMS | Configuration, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS |
| Fuel Sensors | LLS (Analog/BLE/RS232), Built-in CAN |
