TC-100
newExclusive

TC-100
Make In India

Vehicle Trackers

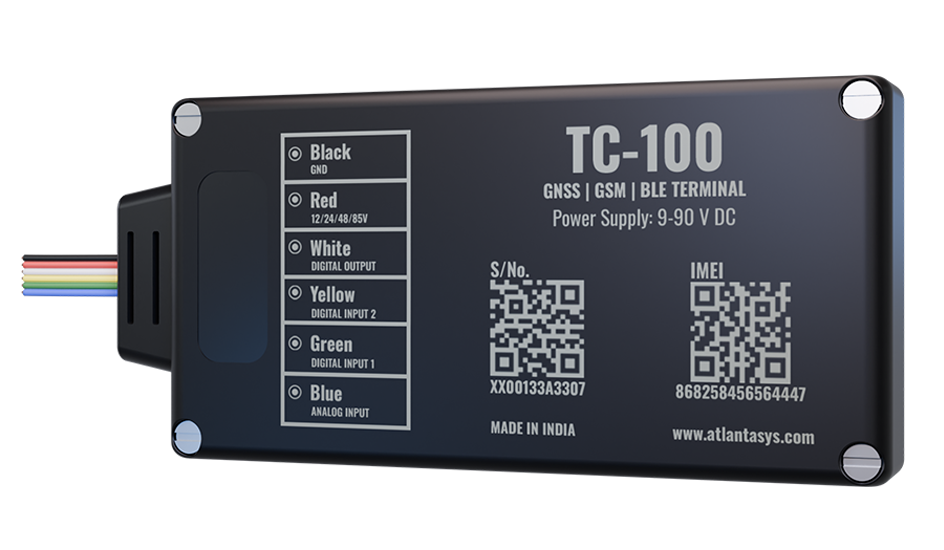

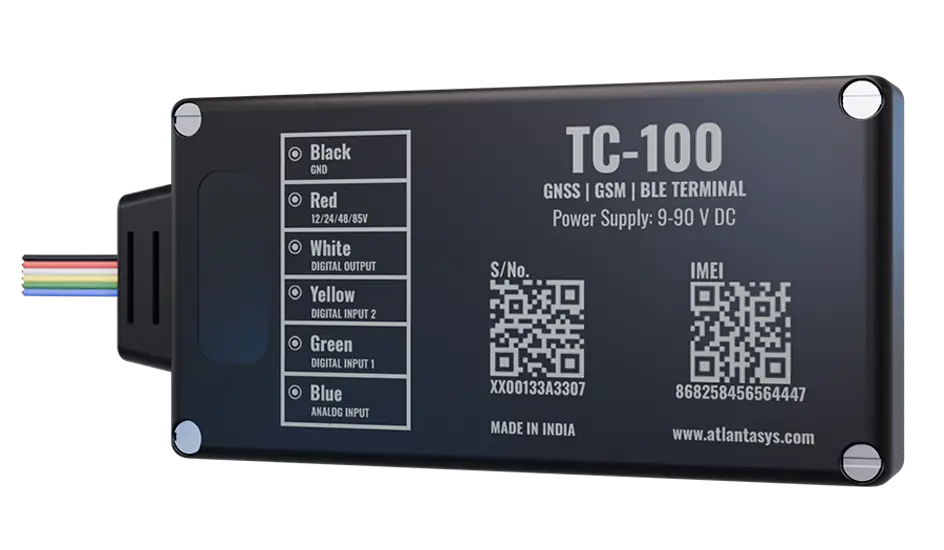

TC-100 is an intelligent vehicle tracking device with internal high-gain GPS & GSM antennas and integrated credible battery backup. It is also equipped with 2 Digital inputs and 1 Digital Output to cover the overall requirements of the users. 1 ADC input helps in connecting the different analog sensors.

  • Panic /SOS button
  • High accuracy internal motion sensor
  • Small in size
  • Real-time tracking
  • Remote Data Logging When No GSM

KEY FEATURES

I/O's
Digtal Input: 2, Digtal Output: 1, Analog Input: 1
GNSS & GPS Antenna
Internal High Gain Antenna
Indicators
3 LED's (Power, GSM, GPS)
USB
2.0 Micro USB
SIM
Micro SIM
Memory
32MB
Bluetooth
5.0
Peripheral

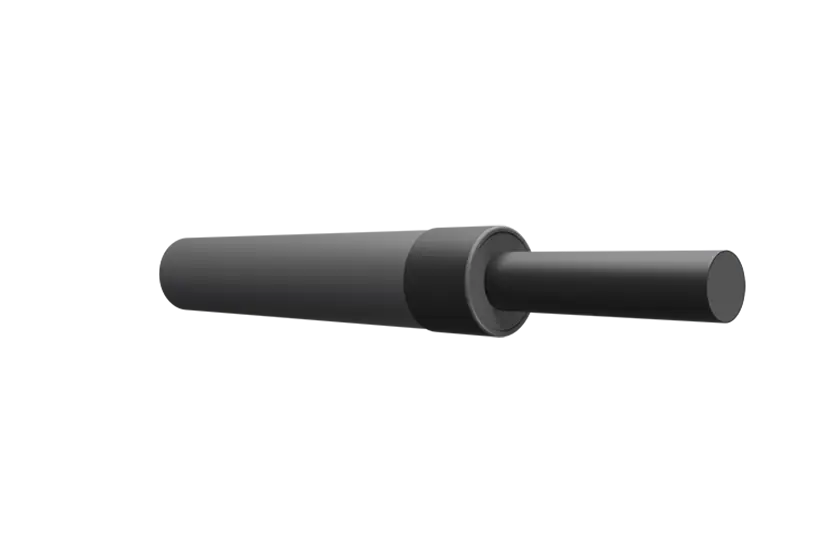

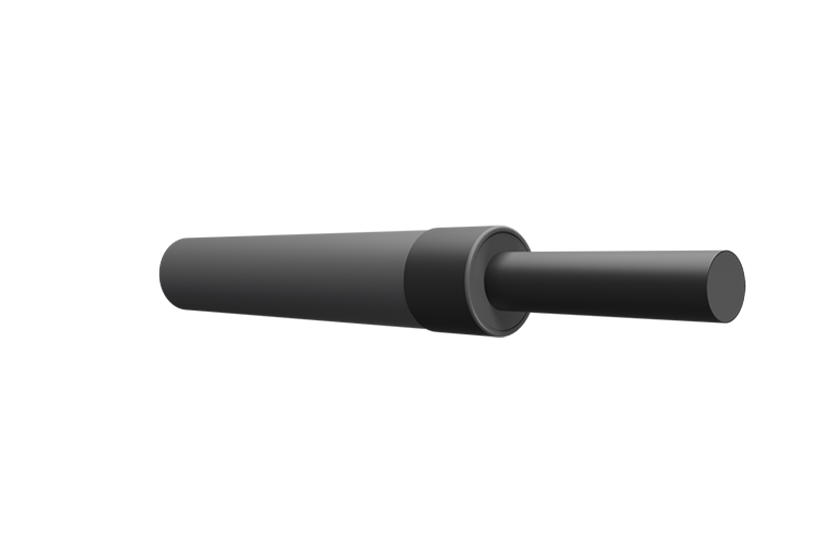

Temperature Sensor, Fuel Sensor

POWER

Voltage Range
9-90V DC
Battery
120mAh Li-Po 3.7V

NAVIGATION

GNSSGPS, GLONASS, BeiDou
Channels
22 Tracking/ 66 Acquisition Channel
Horizontal Position Autonomous
< 2.5m
SBAS
Supported
2 DRMS, Vertical
± 5m
Tracking Sensitivity
-161dBm
Re acquisition Sensitivity
-146dBm
Velocity
< 0.1m/s
Hot Start
< 1sec
Warm Start
< 30sec
Cold Start
< 35sec

CELLULAR NETWORK

Band
2G (850/ 900/ 1800/ 1900MHz)
RF Power

Class 4 (2W@850/ 900MHz), Class 1 (1W@1800/ 1900MHz)

Coding Scheme
CS 1, 2, 3, 4
SMS
Point to Point MO & MT, SMS cell broadcast

OPERATING ENVIRONMENT

Working Current
Sleep Mode < 25mA, Active Mode < 200mA
Operating Temperature
-10°C to +75°C
Humidity
5% to 95% non-condensing at +40°C
