Bluetooth connectivity expands usage scenarios with beacons, humidity, and temperature sensors.
Seamlessly connect for real-time vehicle data monitoring and diagnostics with built-in CAN port.

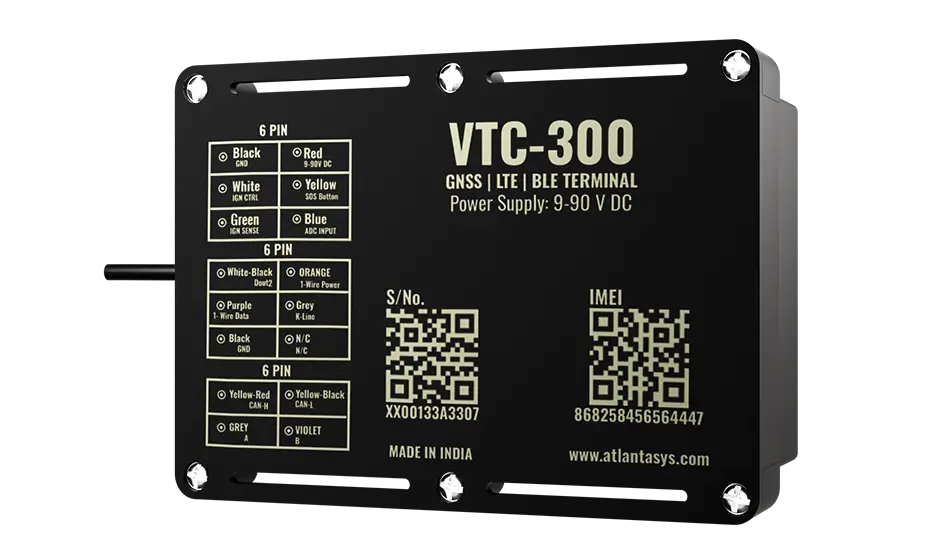

Advanced CAT 1 tracking device with 4G LTE and dependable 2G backup for reliable connectivity.
| Digital Input | 2 |
| Digital Output | 3 |
| Analog Input | 1 |
| 1-Wire | 1 |
| CAN | 1 |
| RS485 | 1 |
| GNSS Antenna | Internal High Gain GNSS |
| LTE Antenna | Internal High Gain LTE |
| Indicators | 3 LED's (Power, LTE, GNSS) |
| SIM | Micro SIM |
| USB | 2.0 Micro USB |
| Memory | 64Mb |
| CAN Support | All legislated OBD-II Protocols, Non-Legislated OBD Protocols & Heavy-Duty |
| GNSS | GPS, GLONASS, GALILEO, BeiDou, QZSS |
| Channels | 47 Tracking Channel |
| Horizontal Position Autonomous | < 2.5m CEP |
| SBAS | < 2.0 |
| Tracking Sensitivity | -166dBm |
| Re acquisition Sensitivity | -147dBm |
| Velocity | < 0.1 m/s |
| Hot Start | < 1sec |
| Warm Start | < 28sec |
| Cold Start | < 30sec |
| Technology | LTE CAT1, GSM |
| 2G Band | EU: 850/900/1800/1900 MHz, NA: 850/900/1800/1900 MHz, AS:900/1800 MHz |
| 4G LTE Bands | EU: LTE FDD:B1/B3/B5/B7/B8/B20/B28, NA: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66, AS: LTE FDD: B1/B3/B5/B8, LTE TDD: B34/B38/B39/B40/B41 |
| RF Power | EU & NA: GSM850/EGSM900: Class 4 (33 dBm ±2 dB), DCS1800/PCS1900: Class 1 (30 dBm ±2 dB), LTE-FDD: Class 3 (23 dBm ±2 dB); AS: EGSM900: Class 4 (33 dBm ±2 dB), DCS1800: Class 1 (30 dBm ±2 dB), LTE-FDD: Class 3 (23 dBm ±2 dB), LTE-TDD: Class 3 (23 dBm ±2 dB) |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | Point to point MO & MT, SMS cell broadcast |
| Voltage Range | 9-90 V DC |
| Battery | 1000 mAh Li-Ion battery, 3.7 V |
| Specification | BLE 5.0 |
| Supported Peripherals | Temperature and Humidity sensor |
| Working Current | Sleep Mode < 25mA*, Active Mode < 180mA |
| Operating Temperature | -20 °C to +70 °C (With Battery), -30 °C to +80 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |
| Ingress Protection Rating | IP65 |
| Dimension | 95 x 72 x 30 mm (LxBxH) |
| Weight | 110 g (Approx) |
