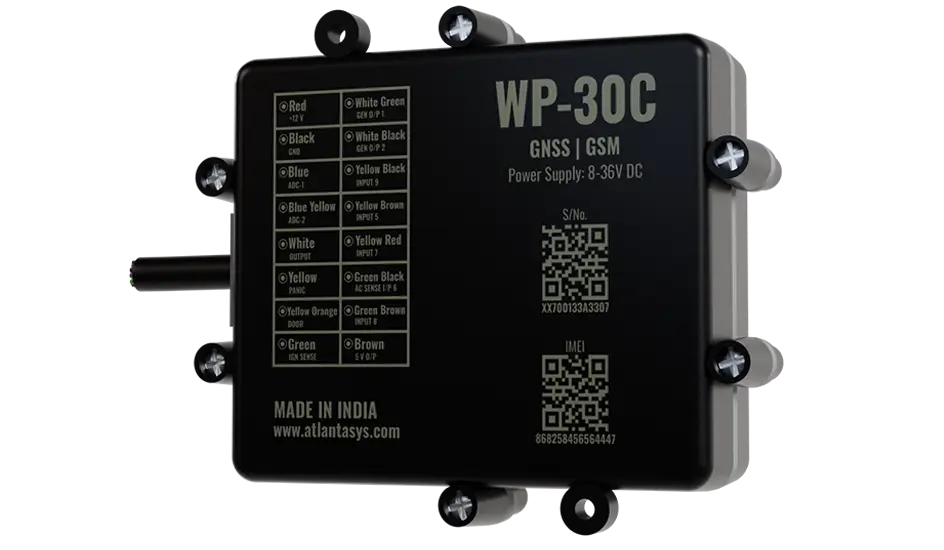

WP-30C is an advanced vehicle tracker for automobiles and Heavy Commercial Vehicles (HCV); It is significantly designed to provide tracking accuracy of fewer than three meters and enabled with high again active antennas this is all sealed with robust IP65 casing to make it durable for harsh conditions. Abled with multiple digital inputs, digital outputs, analog inputs, serial ports and one-wire communication make it capable of connecting with multiple peripherals.
| KEY FEATURES | |
| IO | Digital Input: 7, Digital Output: 3, Analog Input: 2, RS232: 2* |
|
GNSS & GPS Antenna
|
Internal High Gain Antenna
|
|
Indicators
|
3 LED's (Power, GSM, GPS)
|
|
SIM
|
Micro SIM |
|
Memory
|
40,000 Log Packets |
| Support | Accelerometer Support |
| POWER | |
| Voltage Range | 8-36V DC |
| Battery | 1000mAh Li-Po 3.7V |
| NAVIGATION | |
| GNSS | GPS, QZSS, BeiDou, GAGAN |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Sensitivity | -165dBm |
| Acceleration Accuracy | 0.1 m/s2 |
| Velocity Accuracy | < 0.1m/s (within +/- 15% error) |
| Hot Start | < 1sec |
| Warm Start | < 30sec |
| Cold Start | < 31sec |
| CELLULAR NETWORK | |
| Band | 2G Band: 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900 MHZ), Class 1 (1W@1800/1900 MHz) |
| Coding Schemes | CS 1, 2, 3, 4 |
|
SMS
|
Point to point MO & MT, SMS cell broadcast
|
| OPERATING ENVIRONMENT | |
| Working Current | Sleep mode < 5mA, Active mode < 125mA |
| Operating Temperature |
-10°
C to +80°
C
|
| Humidity | 5% to 95% non-condensing at +40°C |
*optional
