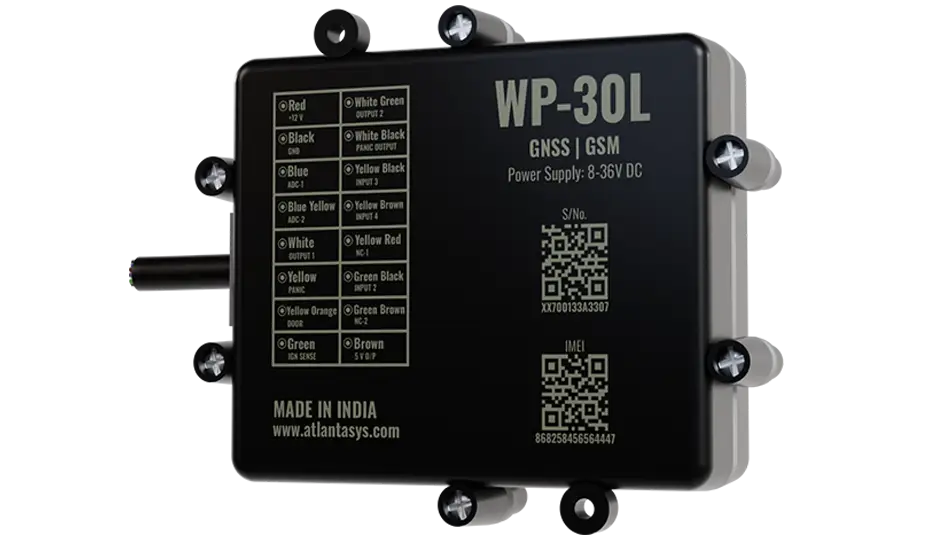

AIS140-compliant tracker for all public and commercial transportation in India.
The IP65-rated casing ensures robust protection against dust and water immersion.
Extended uptime, minimizing interruptions, enhancing operational reliability and efficiency
| Digital Input | 7 |
| Digital Output | 4 |
| Analog Input | 2 |
| RS232 | 1 |
| GNSS Antenna | Internal High Gain GNSS |
| GSM Antenna | Internal High Gain GSM |
| Indicators | 5 LEDs (Power, GSM, GNSS, Charging, MCU Status) |
| SIM | eSIM |
| Memory | 80,000 Log Packets |
| GNSS | GPS, IRNSS, GLONASS, GALILEO, BDS, QZSS |
| Horizontal Position Autonomous | <1.8m CEP |
| SBAS | Supported |
| Tracking Sensitivity | -163 dBm |
| Re acquisition Sensitivity | -157 dBm |
| Velocity | 0.1 m/s |
| Hot Start | 1 sec |
| Warm Start | 5 sec |
| Cold Start | 15 sec |
| Technology | GSM |
| 2G Band | 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900 MHz), Class 1 (1W@1800/1900 MHz) |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | Point to point MO & MT, SMS cell broadcast |
| Voltage Range | 8-36V DC |
| Battery | 1000mAh Li-Po 3.7V |
| Working Current | Sleep Mode < 5mA, Active Mode < 125mA |
| Operating Temperature | -20 °C to +60 °C (With Battery), -30 °C to +75 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |
| Ingress Protection Rating | IP65 |
| Dimensions | 99x87x29 mm (LxBxH) |
| Weight | 173 g |
| Sensors | 3D Accelerometer & 3D Gyroscope |
| Scenarios | Overspeed detection, Manual Geofence, Unplug detection, Harsh Acceleration, Harsh Braking, Harsh turning, Cabinet tamper detection, Battery low, Parameter setting alerts, SOS alerts |
| Sleep modes | Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA |
| SMS | Configuration, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS |
| Fuel monitoring | LLS (Analog & RS232) |
| Ignition detection | Digital Input1 |
